Size Chart Guide

X
  • Below-Knee
  • Above-Knee
  • Measuring Tips & Videos

STEP 1: Bottom Circumference

Measure the circumference of your limb 6cm up from the bottom. Continue to STEP 2: Find your size



Measuring for Alps Eco prosthetic liner.

STEP 2: Find your size

Take your bottom measurement and use the chart to determine your size. If you're in-between sizes, we suggest remeasuring again to be on the safe side. If the size you arrived at, after measuring seems too big or small, in some cases it helps to use the size of your current liner as a very rough guide. The size may be printed on the liner. Continue to STEP 3: Length

SIZE CIRCUMFERENCE (centimeters)
16 16-19 cm
20 20-23 cm
24 24-25 cm
26 26-27 cm
28 28-31 cm
32 32-37 cm
38 38-43 cm
44 44-53 cm

STEP 3: Length

Length is a matter of preference. You can trim this liner with a very sharp scissors. Start by applying your Alps Superior Performance Liner and mark on the liner where you want to trim. Remove your liner and trim at your mark.



STEP 1: Bottom Circumference

Measure the circumference of your limb 6cm up from the bottom. Continue to STEP 2: Find your size



Measuring for Alps Eco prosthetic liner.

STEP 2: Find your size

Take your bottom measurement and use the chart to determine your size. If you're in-between sizes, we suggest remeasuring again to be on the safe side. If the size you arrived at, after measuring seems too big or small, in some cases it helps to use the size of your current liner as a very rough guide. The size may be printed on the liner. Continue to STEP 3: Length

SIZE CIRCUMFERENCE (centimeters)
16 16-19 cm
20 20-23 cm
24 24-25 cm
26 26-27 cm
28 28-31 cm
32 32-37 cm
38 38-43 cm
44 44-53 cm

STEP 3: Length

Length is a matter of preference. You can trim this liner with a very sharp scissors. Start by applying your Alps Superior Performance Liner and mark on the liner where you want to trim. Remove your liner and trim at your mark.

When measuring your thigh, pay special attention to how tight you take your measurement. It's best to pull the ends of your tape measure somewhat tight and then release. Your goal is to find a middle ground of how much tension you should apply to your measuring tape. Too tight and too loose will both result in a poorly fitting prosthetic liner.



FREE SHIPPING FOR USA ORDERS OVER $85
DONE

Prosthetic Categories

ALPS South

ALPS Superior Performance HD Liner, Cushion & Locking Liner, High Activity, AK & BK, HD Gel

Alps Superior Performance Prosthetic Liner is available in cushion and locking versions.
Alps Superior Performance gel thickness for cushion and pin lock versions.
Alps Superior Performance Liner uniform 3mm and 6mm cushion gel thicknesses.
Alps Superior Performance Locking Liner for socket locks that use a pin.
Alps Superior Performance Cushion Liner for use with suction and prosthetic sleeves.

Roll over image to zoom in

ALPS South

ALPS Superior Performance HD Liner, Cushion & Locking Liner, High Activity, AK & BK, HD Gel

Size Chart Guide
€187,95
€187,95
€19,99

Limited Stock, 70% of sizes ship within 5 business days.

X

Subscribing to Autoship? Great!

Image 1

Flexible frequency:

Not sure how often you need this product? No worries! You can always adjust it in your account.

Image 1

3 day reminder:

We'll email you a reminder before each shipment. If you're not ready, you can delay your delivery.

Cancel and modify anytime:

You can easily cancel, make changes, add products and manage your delivery schedule using your Amputee Store account.

Close

Free Shipping

Buy all three

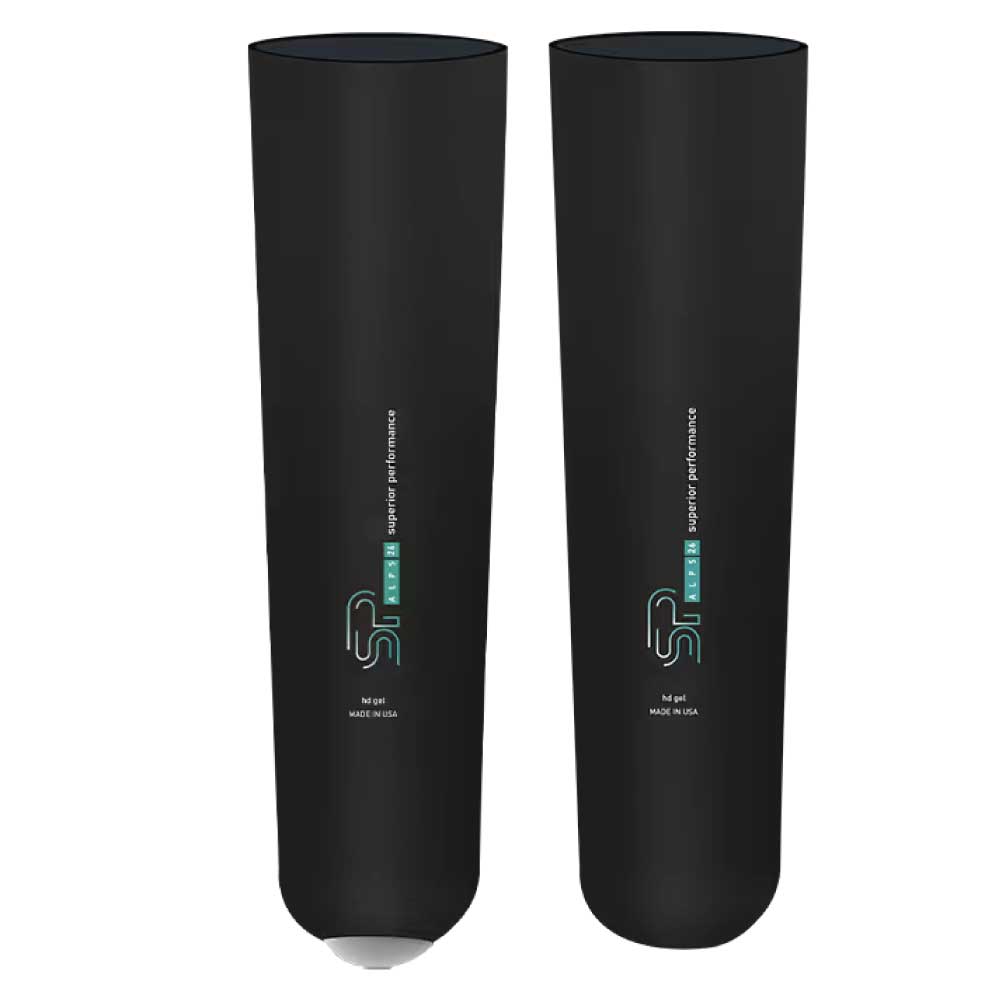

Alps Superior Performance HD Prosthetic Liner Description

The Alps Superior Performance Liner HD (High Density) is available in two different gel formulations, HD Gel and Grip Gel. Alps formulated this prosthetic liner with HD Gel to meet the needs of weekend warriors, those transitioning from a silicone (vs. gel) liners, and anyone with excessive redundant skin along the bottom of their limbs.

Alps' HD Gel is formulated to provide extra firmness for added control and stability. The high density nature of HD Gel helps to protect your limb by reducing any friction and shear stresses experienced within your prosthetic socket. The Superior Performance Liner's premium seamless knit fabric limits pistoning and vertical stretch, providing a more secure fit when in combination with HD Gel's unwillingness to overly stretch vertically.

Benefits

  • **Manufacturer is experiencing 1-3 week production delays for some sizes.
  • Alps HD Gel offers stability and firmness of silicone with the comfort of gel
  • Below-Knee and Above-Knee sizing available
  • Ideal prosthetic liner when transitioning from a silicone liner
  • Designed for medium to high activity levels
  • Engineered for athletes who require a firm surface to pivot and make quick transitions
  • Firmness of High Density Gel helps maintain the shape of residual limbs with excessive loose skin, especially along the bottom
  • Available in 3mm and 6mm uniform thicknesses
  • Outer premium knit covering limits elongation and reduces pistoning
  • Latex free and hypoallergenic
  • Black Color
  • Locking pin is not included
  • *Not vacuum approved as a replacement for the gel liner initially provided with your Vacuum System
  • SPDTHD/SPFRHD Made in USA
  • Sold individually in a polybag

Suggested Use

The seamless knitted outer fabric has a chic look and its durability helps extend the life of your prosthetic liner. The Alps Superior Performance Prosthetic Liner is available in both cushion and locking, and offers sizing for AK limb loss. If you replace your current liner please ensure your current liner is either 6mm or 3mm uniform thickness.

Read our Prosthetic Liner Guide for more information on prosthetic liners.

How-to Apply

Invert your Alps prosthetic liner so that the logo is on the inside. Place the end of your liner against the end of your limb. If using a pin lock liner, center the pin attachment on the bottom of your limb. Carefully roll your prosthetic liner onto your limb.

***Warning: Do not pull your liner onto your limb. Pulling the liner may stretch the skin and result in an uncomfortable fit and possible skin issues along the edge of your liner. Last, make sure that there are no wrinkles or air pockets between the liner and your limb. Air pockets cause excessive sweating.

Have product questions? We're here to help!

Chat

Features & Details

Alps Superior Performance Liner Materials

Alps HD Gel: Thermoplastic Elastomer (TPE) Gel

Directions for Use

Prior to applying your Superior Performance Liner make sure your residual limb is clean, dry, and free of any soap residue. Cover any open wounds and non-intact skin with a product similar to Spenco. Alps states to avoid using any type of animal based lotions or powders on your residual limb or liner. These products may damage your Alps Liner.

Care Instructions

Proper hygiene is critical when wearing any prosthetic liner. Your Superior Performance Prosthetic Liner must be thoroughly cleaned each day and disinfected once a week. Clean the gel side of your Superior Performance liner using lukewarm water and a pH balanced prosthetic cleanser. Apply your prosthetic cleanser with a clean, soft cloth or sponge.

**Warning: Do not scrub your liner on either the fabric or gel sides.

Rinse your Superior Performance Liner with water and dry it with a clean and lint-free cloth. Place your Alps Liner on a drying stand with the logo on the outside.

Once a week spray the gel side of your liner with ethyl alcohol spray and wipe clean with a lint-free soft cloth. Last, rinse any alcohol from your liner with water and dry again using the above instructions.

Precautions

Do not place your Alps Superior Performance Liner on an open wound. If irritation, discomfort or poor circulation occurs, discontinue use and notify your physician or Prosthetist immediately. Do not wear a Superior Performance for more than 20 hours daily.

This Superior Performance Liner is not indicated for any amputee who has a skin condition which can be aggravated when covered by a non-porous gel material. Above knee prosthetic users should not wear this prosthetic liner if their residual limb is shorter than 3 inches, unless a secondary AK Belt is used.

Part Numbers (SKUs)

SIZE LOCKING CUSHION
16 SPDTHD16-(6) SPFRHD16-(6)
20 SPDTHD20-(6) SPFRHD20-(6)
24 SPDTHD24-(6) SPFRHD24-(6)
26 SPDTHD26-(6) SPFRHD26-(6)
28 SPDTHD28-(6) SPFRHD28-(6)
32 SPDTHD32-(6) SPFRHD32-(6)
38 SPDTHD38-(6) SPFRHD38-(6)

Returns

If you're not completely satisfied with your Amputee Store purchase, you can return your eligible items within 90 days of the original ship date. Items in new condition (unopened/unworn/unwashed) can be returned for a full product refund less original shipping costs. Please read our complete return policy for further instructions.
