Size Chart Guide

X
  • Below-Knee
  • Above-Knee
  • Measuring Tips & Videos

STEP 1: Bottom Circumference

Measure the circumference of your limb 6cm up from the bottom. Continue to STEP 2: Find your size



Measuring for Alps Eco prosthetic liner.

STEP 2: Find your size

Take your bottom measurement and use the chart to determine your size. If you're in-between sizes, we suggest remeasuring again to be on the safe side. If the size you arrived at, after measuring seems too big or small, in some cases it helps to use the size of your current liner as a very rough guide. The size may be printed on the liner. Continue to STEP 3: Length

SIZE CIRCUMFERENCE (centimeters)
Small 20-23 cm
Medium 24-25 cm
Medium Plus 26-27 cm
Large 28-31 cm
X-Large 32-37 cm
2X-Large 38-43 cm
3X-Large 44-53 cm

STEP 3: Length

Length is a matter of preference. You can trim this liner with a very sharp scissors. Start by applying your Alps Eco Liner and mark on the liner where you want to trim. Remove your liner and trim at your mark.

STEP 1: Bottom Circumference

Measure the circumference of your limb 6cm up from the bottom. Continue to STEP 2: Find your size



Measuring for Alps Eco prosthetic liner.

STEP 2: Find your size

Take your bottom measurement and use the chart to determine your size. If you're in-between sizes, we suggest remeasuring again to be on the safe side. If the size you arrived at, after measuring seems too big or small, in some cases it helps to use the size of your current liner as a very rough guide. The size may be printed on the liner. Continue to STEP 3: Length

SIZE CIRCUMFERENCE (centimeters)
Small 20-23 cm
Medium 24-25 cm
Medium Plus 26-27 cm
Large 28-31 cm
X-Large 32-37 cm
2X-Large 38-43 cm
3X-Large 44-53 cm

STEP 3: Length

Length is a matter of preference. You can trim this liner with a very sharp scissors. Start by applying your Alps Eco Prosthetic Liner and mark on the liner where you want to trim. Remove your liner and trim at your mark.



When measuring your thigh, pay special attention to how tight you take your measurement. It's best to pull the ends of your tape measure somewhat tight and then release. Your goal is to find a middle ground of how much tension you should apply to your measuring tape. Too tight and too loose will both result in a poorly fitting prosthetic liner.



FREE SHIPPING FOR USA ORDERS OVER $85
DONE

Prosthetic Categories

ALPS South

Alps Eco Liner, Cushion & Locking Liner, Moderate to High Activity, HD Gel

Alps Eco Liner for active amputees available for both bk and ak amputees.
Alps Eco Locking Liner available in 3mm and 6mm uniform thickness.
Alps Eco Liner cushion is available in 3 and 6mm uniform thicknesses.
Alps Eco Liner with pin lock option for locking mechanisms.
Alps Eco Liner with cushion option for suction sockets that use a prosthetic sleeve.

Roll over image to zoom in

ALPS South

Alps Eco Liner, Cushion & Locking Liner, Moderate to High Activity, HD Gel

Limited time deal

Discount on select sizes.

Size Chart Guide
€174,95 - €183,95
€174,95 - €183,95
€19,99

*This product will delay your order 7-9 business days.

X

Subscribing to Autoship? Great!

Image 1

Flexible frequency:

Not sure how often you need this product? No worries! You can always adjust it in your account.

Image 1

3 day reminder:

We'll email you a reminder before each shipment. If you're not ready, you can delay your delivery.

Cancel and modify anytime:

You can easily cancel, make changes, add products and manage your delivery schedule using your Amputee Store account.

Close

Free Shipping

Buy all three

Alps Eco Prosthetic Liner

A comfortable socket and functional prosthesis often begins with your prosthetic liner. The Alps Eco Liner was thoughtfully engineered to meet the demands of today's moderate to high activity prosthetic users. The Eco Liner was aptly named due to its environmentally friendly seamless outer fabric knitting process that requires less energy.

Benefits

  • Alps' HD Gel formula offers the performance of silicone along with the comfort of gel
  • HD Gel works well for amputees with softer or less firm residual limbs or extra (redundant) tissue
  • Available in both Below-Knee and Above-Knee sizing
  • Designed for moderate to high activity prosthetic users
  • Uniform 3mm and 6mm thickness profile for both Cushion and Locking versions
  • Knitted seamless outer covering offers a premium feel and added stability
  • Latex free and hypoallergenic
  • Beige color
  • Locking pin is not included
  • *Not vacuum approved as a replacement for the gel liner initially provided with your Vacuum System
  • Made in USA
  • Sold individually in a polybag

Suggested Use

Alps' team evaluated each requirement and formulated this Alps liner with their HD Gel Formula. HD Gel lessens the vertical and shear stresses your residual limb experiences while walking due to its firmer nature. The unique bottom configuration lessens gel stretch, thereby reducing distraction or pulling on your limb. Firmer HD Gel permits greater control of your prosthesis while protecting your limb from the stressor of wearing and walking with a prosthesis.

Eco Liner sizing is available for both BK and AK limb loss, in two different uniform thicknesses, 3mm and 6mm. Options also include either cushion or locking (pin lock.)

Read our Prosthetic Liner Guide for more information on prosthetic liners.

How to Install

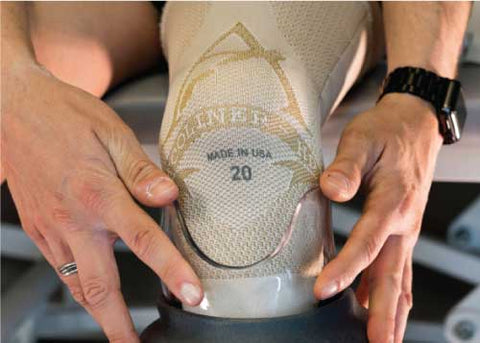

Invert your Alps prosthetic liner so that the logo is on the inside. Place the end of your liner against the end of your limb. If using a pin lock liner, center the pin attachment on the bottom of your limb. Carefully roll your liner onto your limb.

***Warning: Do not pull your liner onto your limb. Pulling the liner may stretch the skin and result in an uncomfortable fit and possible skin issues along the edge of your liner. Last, make sure that there are no wrinkles or air pockets between the liner and your limb. Air pockets cause excessive sweating.

Have product questions? We're here to help!

Chat

Features & Details

Alps Eco Liner Materials

Thermoplastic Elastomer (TPE), ALPS HD Gel formula is firmer and less tacky than the ALPS Grip Gel.

Directions for Use

Prior to applying your Alps Eco Liner make sure your residual limb is clean, dry, and free of any soap residue. Cover any open wounds and non-intact skin with a product similar to Spenco. Alps states to avoid using any type of animal based lotions or powders on your residual limb or liner. These products may damage your Alps Liner.

Care Instructions

Proper hygiene is critical when wearing any prosthetic liner. Your Alps Eco Liner must be thoroughly cleaned each day and disinfected once a week. Clean the gel side of your Eco Liner using lukewarm water and a pH balanced prosthetic cleanser. Apply your prosthetic cleanser with a clean, soft cloth or sponge.

**Warning: Do not scrub your liner on either the fabric or gel sides.

Rinse the Alps HD Gel with water and dry it with a clean and lint-free cloth. Place your Eco Liner on a drying stand with the logo on the outside.

Once a week spray the gel side of your liner with ethyl alcohol spray and wipe clean with a lint-free soft cloth. Last, rinse any alcohol from your liner with water and dry again using the above instructions.

Precautions

Do not place your Alps Eco Liner on an open wound. If irritation, discomfort or poor circulation occurs, discontinue use and notify your physician or Prosthetist immediately. Do not wear an Eco Liner for more than 20 hours daily.

This Alps Eco Liner Liner is not indicated for any amputee who has a skin condition which can be aggravated when covered by a non-porous gel material. Above Knee users should not wear a locking prosthetic liner if your residual limb is shorter than 3 inches, unless a secondary AK Belt is used.

Part Numbers (SKUs)

SIZE LOCKING CUSHION
Small ECDTHD20-(6) ECFRHD20-(6)
Medium ECDTHD24-(6) ECFRHD24-(6)
Medium Plus ECDTHD26-(6) ECFRHD26-(6)
Large ECDTHD28-(6) ECFRHD28-(6)
X-Large ECDTHD32-(6) ECFRHD32-(6)
2X-Large ECDTHD38-(6) ECFRHD38-(6)
3X-Large ECDTHD44-(6) ECFRHD44-(6)
